Avalon Pellet Stove Convection Motor Blower D-126 - 11-1210 G

  • Product Code: m-456
  • Availability: In Stock
  • $189.97

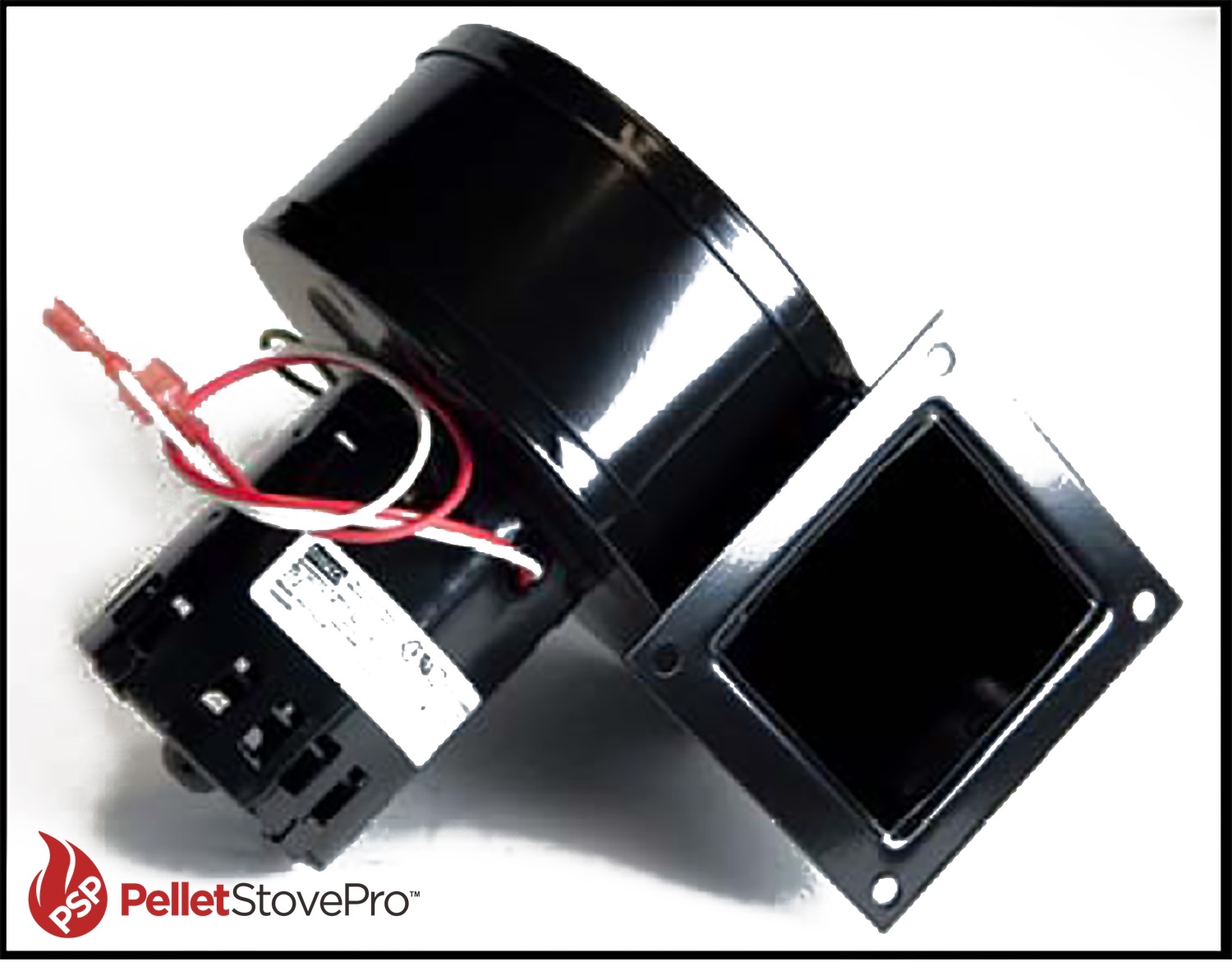

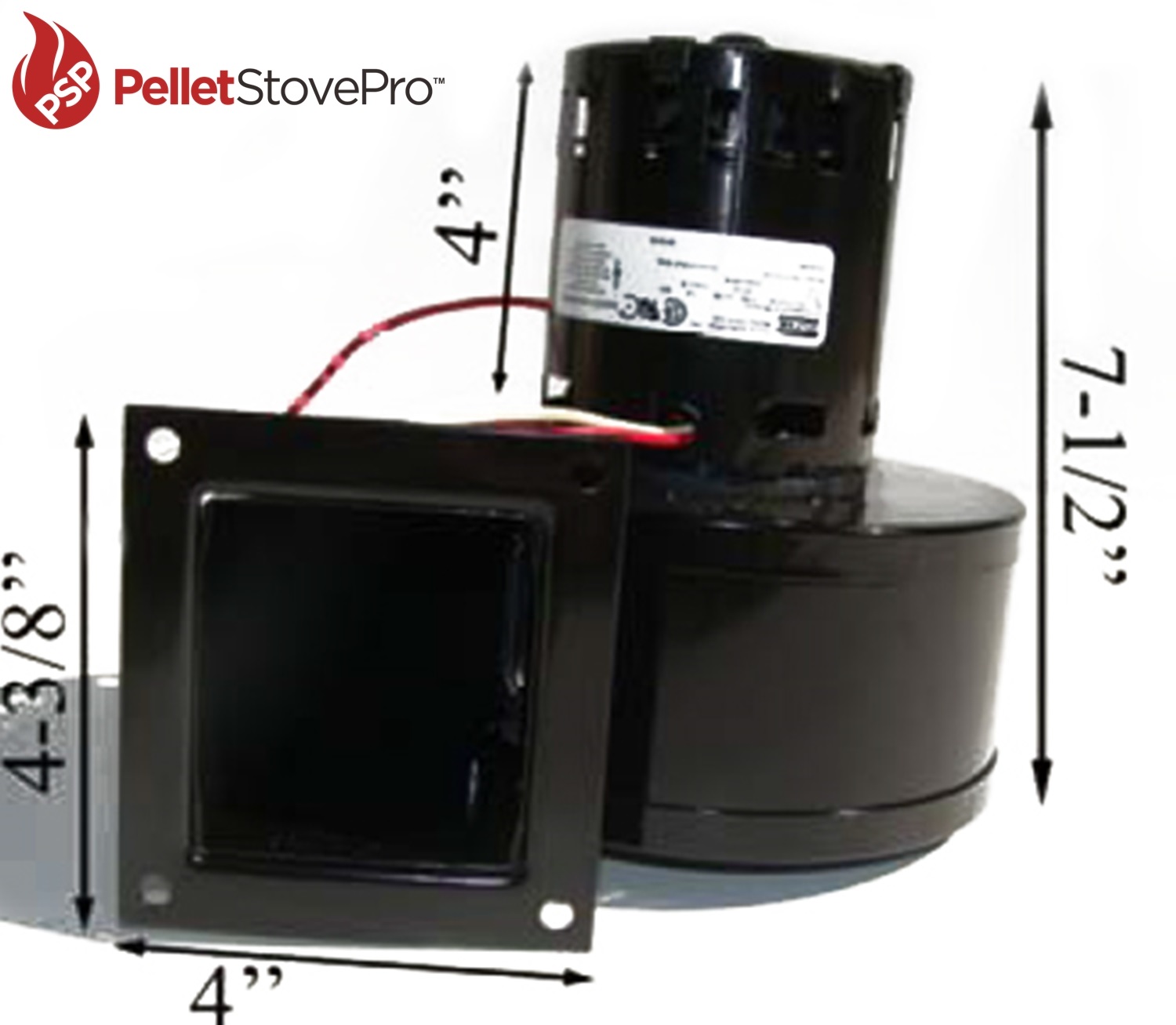

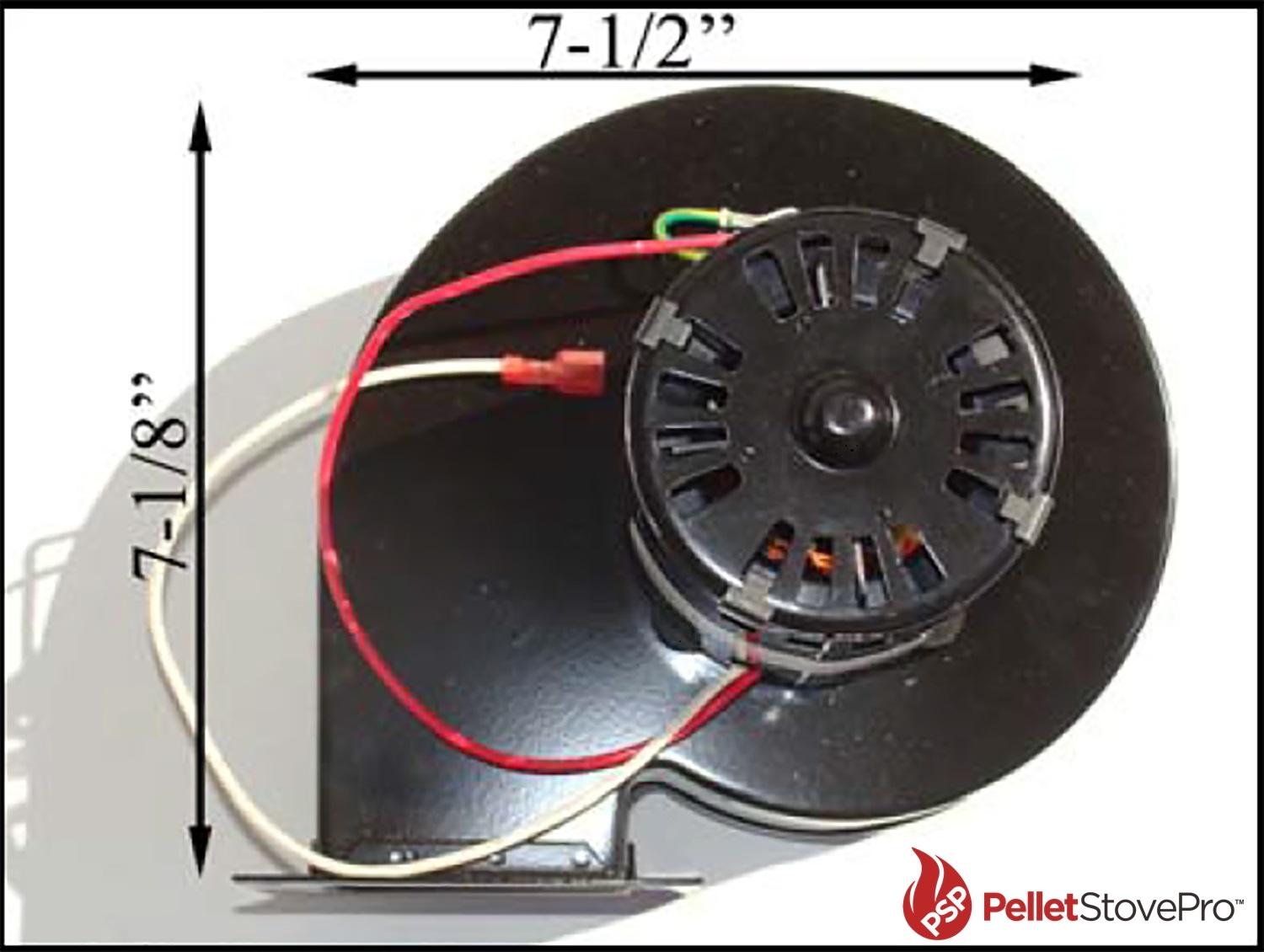

Avalon Pellet Stove Convection Motor Blower D-126








Longer Lasting, High Efficiency, Low Cost, Virtually NOISELESS

Buy Your Part with a Partner

My name is Jason Munson and I?m a Stove Tech in California.

 100% FREE 24/7 online Technical Help @ http://www.pelletstovepro.com

FREE, Live tech support at 844-409-5051.  Call NOW!

You?ll find useful tips on my blog





I Promise?

  • To provide the highest quality part
  • To Price items fairly
  • To ship within 24hrs or less
  • To provide all the email and phone support you need.



Fits all Avalon Pellet Stove Models. Avalon has only used one fan in the past and it's the same one that fits on all their new stoves as well which makes it really easy to match. Feel free to call me and confirm but if you have a Avalon stove, this is the right part.

Specifications:

? Voltage: 115 VAC 60 Hz
? RPM: 3000
? Amps: 1.5
? Motor Protection: Thermally Protected
? Termination: 2 wire with AMP terminal
? Warranty: 1 Year
? Mounting: All positions
? Duty Cycle: Continuous

WARNING: Do not re-use or buy a new gasket for this motor. We have found that the gasket deterioates in a short period of time which leaves the motor loose. This results in significant vibration and noise. Mounting the fan to the stove with NO gasket eliminates this problem.
Features

Ultra Quiet motor designed by Fasco

Ultra Quiet Engineering
If you want Peace and Quiet with Low Vibration?You found the right motor. This motor is so quiet; you won?t know your stove is on.
  • Estimated Lifespan: 15-20 years.
  • Fasco uses the highest standards of engineering with parts calibrated within 1/10,000th of an inch. The room for error is so small is has to be checked using a microscope.
  • Your new motor is designed for Variable Speed which requires high quality electronic components not included in other motors.
  • High temperature rubber bushings and washers are used to Damper Vibration.
  • A FREE high temperature micro fiber low vibration gasket is included with you motor to insure you have the highest quality item available anywhere.
  • Go Green. In accord with new environmental standards your new motor is more efficient so it cost less to run.

Heat Reduction
  • Fasco Conve tion Motors are tested to run 24/7 in hot and dusty atmospheres.
  • Your new motor has a Internal cooling fan designed for heat reduction.
  • Calibrated for high stress operations which keeps the motor cooler and makes it last longer. This combined with Ultra Quiet Engineering results in a motor that lasts a very long time while remaining quiet.

Six Sigma Company
Fasco is a Six Sigma company with a 100 Year history of reliability and quality that is unmatched in the pellet stove industry. Fasco has a team of 100 of the most innovative and experienced application engineers and technicians that are dedicated to make this motor more cost effective, better, more reliable, more efficient, and virtually NOISELESS!

I?ve been repairing pellet stoves and selling these motors for over 10 years and this is the motor that I prefer over all others. There are a few other motors I could sell you but I honestly believe these are the best. They?re extremely quiet and last a very long time.




FREE Replacement Instructions
(Call Jason Munson at any time for questions, 844-409-5051)
  • Unplug your stove from power.
  • If your stove is free standing you will need to remove the access screws on the left side of the stove to access the motor.
  • If your stove is an insert you will need to remove the shroud and pull it out of the fireplace.
  • The exhaust motor is located on the left side of the stove. Remove metal screws that attach the flange plate to the motor housing and remove motor.
  • Disconnect wiring from old motor and attach to new motor.
  • Install new motor with gasket using original metal screws.
  • Put stove back together, plug in and start.



My Promise to You?
  • You can call me anytime on my cell phone, (844) 409-5051. I?m always working and I never sleep! (Ok, maybe sometimes.)
  • ?Buy It Now? and I will ship your part out within 24hrs (M-F) or less!
  • Tracking number emailed to you as soon as I print the shipping label.
  • No Sales Tax saves you 8%
  • Faster Shipping options available at checkout.
  • Ships Internationally.
  • Return Policy. All unused items can be returned for a full refund within 30 days of purchase. Email or Call for instructions.
  • 1 Year Warranty on all parts.



What other buyers say?.
?Hi Jason. I had a good experience with you. Even though you were sick, you responded on a Sunday and called me and gave me good tech. advice. My stove is working perfectly thanks to your advice and I left positive feedback. Thanks.? - Dan

"I had a very good experience doing business with Jason Munson on EBay. He had the part I needed, priced very competitively, and even gave me his phone number and offered to help with technical questions, which I took him up on. He then threw in an extra mounting bracket I needed, at the last minute, at no charge. On top of that, it was the day before Christmas Eve and he was able to ship it out promptly. I appreciated it very, very much." - Gary Jones. Lakeside, California

?You were a big help and got me on track. I ordered the wrong part from you, my fault, and I called you and helped me get my stove up and running. You helped me find a local dealer in pa. Great people to deal with!? - Brenda Storms

?My stove is performing much better than the part for which it replaced. Thank you!! ?- Gary Bailey

?I purchased an auger motor. My questions regarding the motor were answered promptly. The motor arrived packaged nicely and shipped quickly. The price for the motor was less than other stores web based stores that i had checked and called and the customer service was so much better.? -Estelle H.


Important! - Read Before You Buy - Important!

Wiring ? If you have bought a motor your new motor may have a electrical plug that is different from you old motor. Cut the new plug off and splice the wires to the old wiring using your choice of electrical connector. It doesn't matter which wire goes to which as long as they are connected.

Returns - I accept returns 30 days from the date of purchase. You must contact me through eBay messenger BEFORE returning an item to obtain return documents and instructions. Any items returned without documents WILL NOT be refunded.

All Sales are Final. All negotiation of price and shipping must be made before you purchase your item. Once you purchase your item the price and terms cannot be changed for any reason, including if you find a less expensive competing item.
