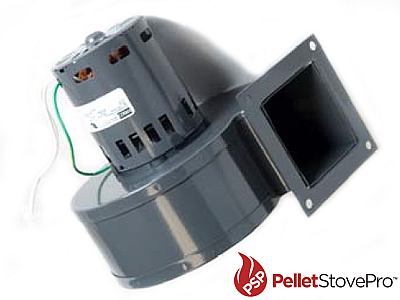

12720004 Bosca Soul 700, Spirit 500, Classic 500 Convection Fan 11-1220 G

Product Code: m-433
Availability: In Stock

$184.99

Qty

0 reviews / Write a review

Bosca PELLET STOVE ROOM AIR CONVECTION BLOWER FAN

Bosca Convection Fan Longer Lasting, High Efficiency, Low Cost, Virtually NOISELESS

Buy Your Part with a Partner

My name is Jason Munson and I?m a Stove Tech in California.

100% FREE 24/7 online Technical Help @ http://www.pelletstovepro.com

FREE, Live tech support at 844-409-5051. Call NOW!

Tech support is complimentary and if you would like to donate click the button below

Fits the Following Bosca Models

Classic 500
Sprit 500
Soul 700

Fits all previous models.
This part may look a little different or have different numbers than your original.
Most current Upgrade available for your stove.

Specifications:

? Voltage: 115 VAC 60 Hz

? RPM: 3000

? Motor Protection: Thermally Protected

? Termination: 2 wire with AMP terminal

? Warranty: 1 Year

? Mounting: All positions

? Duty Cycle: Continuous

Stop Noisy Motors!!!

Ultra Quiet motor designed for Heat Reduction by a Six Sigma Company?.See Below

There are other companies like who manufacture these motors but Fasco is the preferred manufacturer for ALL Pellet Stove Manufacturers. WHY?.

Ultra Quiet Engineering

If you want Peace and Quiet with Low Vibration?You found the right motor. This motor is so quiet; you won?t know your stove is on.

Fasco uses the highest standards of engineering with parts calibrated within 1/10,000^th of an inch. The room for error is so small is has to be checked using a microscope.
This motor is designed for Variable Speed which requires high quality electronic components not included in other motors.
High temperature rubber bushings and washers are used to Damper Vibration.

Heat Reduction

Fasco Exhaust Motors are tested to run 24/7 in hot and dusty atmospheres.
Internal cooling fan designed for heat reduction.
Calibrated for high stress operations which keeps the motor cooler and makes it last longer. This combined with Ultra Quiet Engineering results in a motor that lasts a very long time while remaining quiet.

Six Sigma Company

Fasco is a Six Sigma company with a 100 Year history of reliability and quality that is unmatched in the pellet stove industry. Fasco has a team of 100 of the most innovative and experienced application engineers and technicians that are dedicated to make this motor more cost effective, better, more reliable, more efficient, and virtually NOISELESS!

Fasco has a distinguished quality record to include:

Numerous supplier awards
Sole source status with many accounts
One of the industry's lowest defect rates per million
ISO9001 Certification
Advanced software programming allows linking between plants for real time quality performance monitoring.

This is the highest performance, longest lasting Exhaust Motor ever manufactured and continually outlasts all other brands constantly while remaining competitively priced and ULTRA QUIET. I know because I?ve been repairing and selling these motors personally for over 10 years. Feel free to call me (Jason Munson) on my cell at 844-409-5051.

FREE Replacement Instructions

(Call Jason Munson at any time for questions, 844-409-5051)

Unplug your stove from power.
If your stove is free standing you will need to remove the access screws on the right side of the stove to access the motor.
If your stove is an insert you will need to remove the shroud and pull it out of the fireplace.
Remove 4 nuts that attach the motor housing and remove motor.
Disconnect wiring from old motor and attach to new motor.
Install new motor using original metal screws.
Put stove back together, plug in and start.
